Champion Air Compressor 30 HP 230/460 3PH - $2,500 (Gonzales)

‹ image 1 of 8 ›

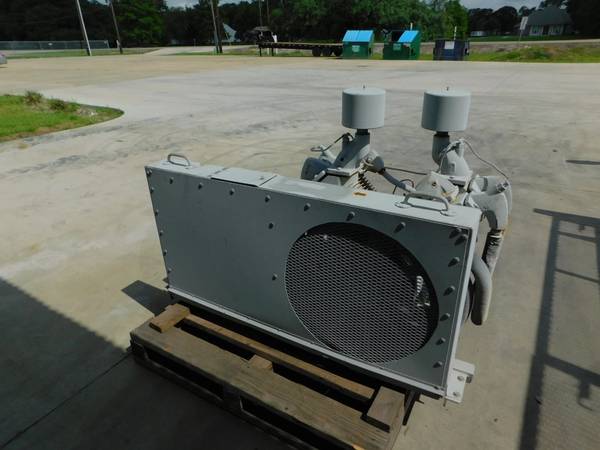

Champion Air Compressor 30 HP 230/460 3PH 1
Champion Air Compressor 30 HP 230/460 3PH 1 thumbnailChampion Air Compressor 30 HP 230/460 3PH 2 thumbnailChampion Air Compressor 30 HP 230/460 3PH 3 thumbnailChampion Air Compressor 30 HP 230/460 3PH 4 thumbnailChampion Air Compressor 30 HP 230/460 3PH 5 thumbnailChampion Air Compressor 30 HP 230/460 3PH 6 thumbnailChampion Air Compressor 30 HP 230/460 3PH 7 thumbnailChampion Air Compressor 30 HP 230/460 3PH 8 thumbnail
condition: good
make / manufacturer: Champion
model name / number: PL-70A

more ads by this seller

QR Code Link to This Post

For sale is one (1) used Champion Single Stage Two Cylinder Air Compressor. Model: PL-70A. GE Motor Model: 5KS286AD205A. 30 HP, 1770 RPM, 200-230/460 Volts, 72/36 Amps, 3 Phase, 1.15 SF. 286T Frame.

30HP 125 PSI Rating 175 PSI Rating 250 PSI Rating
RPM 890 890 770
CFM displ. 127.8 127.0 109.4
CFM del'y 102.1 101.1 90.0

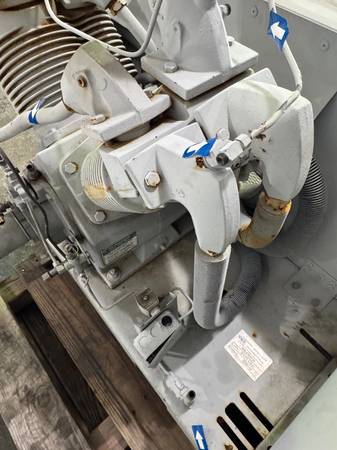

Item is used. Works fine. Bump tested for electrical and compressor mechanical operation. A few oil lines are missing, as indicted by blue arrows in pics 7&8. During operation oil pumps out at the gauge tee.
